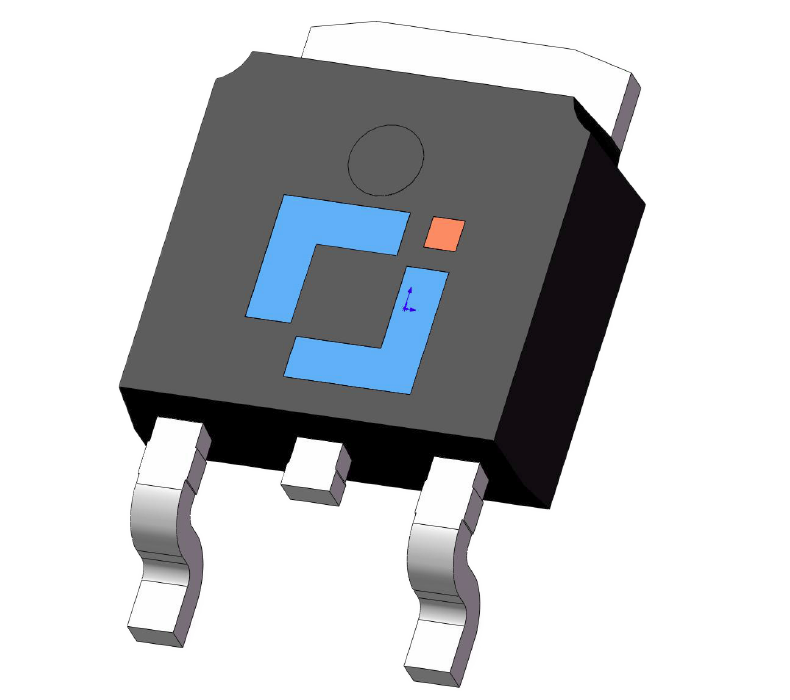

N-Channel 30V , 7.5A , TO-252 , Trench Power MOSFET
| Part Number | Status | VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|
| CJU4410 | Active | ±20 | 7.5 | 1~3 | 8 | 13.5 | 11.5 | 20 | TO-252-2L |
| Part Number | Package Type | Component Weight(g) | Marking | Packing Info | MSL |
|---|---|---|---|---|---|
| CJU4410 | TO-252-2L | 10 | U4410 | 2500 | 3 |
